Description:

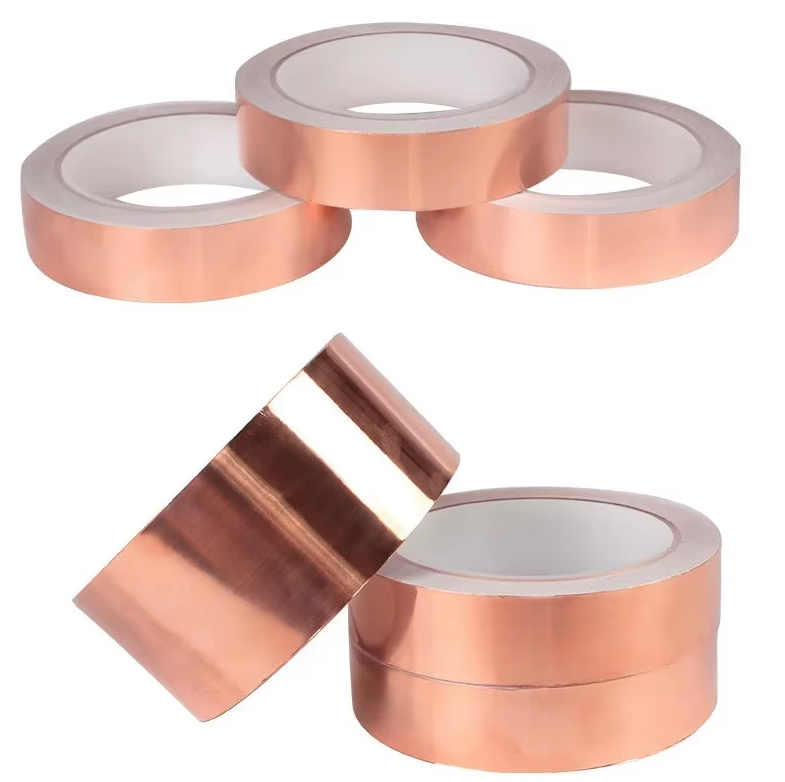

Introducing the Copper Foil Tape (Model: CFT-03), a premium adhesive tape designed for a multitude of electrical and industrial applications. This self-adhesive tape features a high-quality copper foil substrate coated with a conductive acrylic adhesive, providing exceptional conductivity, strong adhesion, and effective EMI/RFI shielding.

Key Features:

• High-Temperature Resistance: Designed to withstand high temperatures, making it ideal for various electrical applications and environments.
• Excellent Conductivity: Coated with a conductive acrylic adhesive, this tape ensures reliable conductivity and effective electromagnetic shielding.
• Waterproof: The tape’s waterproof properties allow it to be used in humid or wet conditions without losing adhesion or conductivity.
• Versatile Applications: Perfect for EMI shielding, electrical repairs, soldering, stained glass projects, crafting, and more.

Technical Specifications:

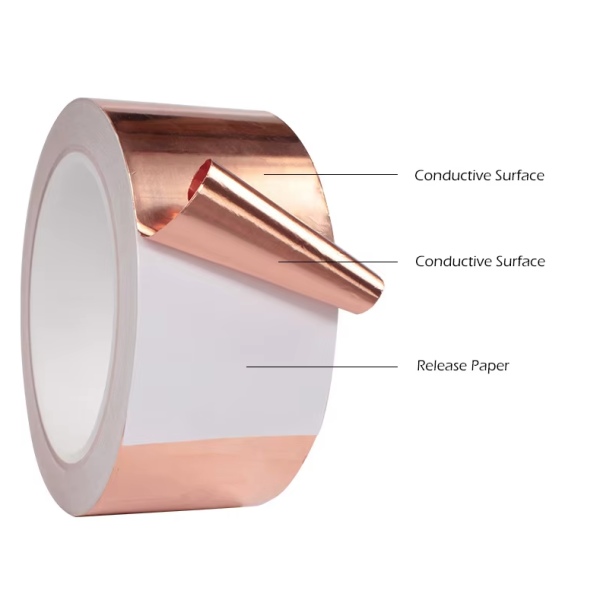

• Adhesive Type: Acrylic, conductive
• Carrier Material: Copper foil
• Total Thickness: 60 microns (0.06 mm ± 0.005 mm)
• Tensile Strength: 4.5 kg/25mm
• Elongation at Break: 5-6%
• Resistance: <0.06 ohm/sq inch
• 180° Peeling Strength: >8 N/inch
• Application Temperature Range: -20°C to 120°C
• Storage Conditions: 20°C, 65% relative humidity

Applications:

1. EMI/RFI Shielding: Effectively eliminates electrical hum and noise in electronic devices. Ideal for guitars, mobile phones, computers, and LCD monitors.
2. Educational Use: Great for creating paper circuits and introducing students to basic electronics concepts.
3. Crafting: Perfect for stained glass projects, where the tape serves as a strong adhesive surface for soldering. It can also be used creatively in various craft projects due to its malleable nature.
4. Slug and Snail Repellent: Acts as a natural barrier, repelling slugs and snails with its electrical charge.

Packaging & Delivery:

• Safety Attention: Safety is paramount when using this tape. Ensure careful handling during application, particularly in sensitive electronic environments.
• Elevate your electrical and crafting projects with the Foil Tape, delivering unmatched quality, durability, and versatility. Order yours today for an effective solution to your EMI shielding needs!
• od flexibility. However, now that you’ve been educated on the ins & outs of EPDM you can make a smart, cost-effective choice by replacing silicone with EPDM in many applications. EPDM gasket material has a temperature range nearly just as wide and is a stronger, more durable material.
• High grade material including Mil-specification is available. EPDM is also available in a white FDA approved sheet.
• Additional information, including the dimensions and sizes of EPDM rubber sheet gasket material we offer are available.

TYPICAL EPDM SPECIFICATIONS:

Excellent resistance to UV rays and ozone. Good resistance to Anti-freeze, Synthetic Detergents, Acetone, Boric acid, Ethanol, Formaldehyde, Mercury, Potassium Sulfate, Silver Nitrate, Steam (up to 212 Fahrenheit), Saccharin. For EPDM’s gasket materials compatibility with your specific medium please contact American Seal & Packing.

• Compound: EPDMWeight: 1/16″ = 0.625 lbs per square foot
• Durometer: 45-55 or 55-65
• Temperature Range: -40°F to 212°F
• Minimum Tensile: 800 PSI
• Finish: Smooth
• Minimum Elongation: 300%
• Gauges: 1/16″, 1/8″, 3/32″, 1/4″, 3/8″, 1/2″
• Widths: 36″ and 48″
• PSA: Can be added
• Flexibility: This medium durometer (45-55) sheet rubber offers moderate pliability and elasticity. The harder durometer variant (55-65) offers higher abrasion resistant durability, but less pliability and flexibility.
• Applications: Provides outstanding resistance to weathering, ozone, and UV exposure. Gasket, bumper and general exterior applications.
• Custom Cuts: In addition to hand fabrication, this product can be fabricated using laser, die, or water-jet cut. Please submit your drawings for a price quote.

Please feel free to contact us for detailed product information, customization options, or to place an order. We look forward to working with you to provide the best solution for your application needs.
